In the last part, we understood how to use espresso intents for both validation and stubbing. Go ahead and have a read in case you missed it.

Dealing with synchronization issues in espresso

Espresso is a smart framework that automatically takes care of some common synchronization use cases for us thus requiring test authors to put minimal synchronization code in place.

When we invokeĀ onView(), espresso waits and checks for the below conditions before proceeding with assertions

  • Is the message queue empty?

  • Are there any instances ofĀ AsyncTaskĀ executing any tasks?

  • Are all developer-defined Idling resources idle?

While this is great for most of the use cases

Espresso still isn't aware of any other async (asynchronous) operations such asĀ some operation running on a background thread

In such cases, we need to let espresso handle know about these, by registering them as anĀ Idling resource

Avoid using bad workarounds for synchronization šŸ‘ŽšŸ¼šŸš«

When trying to synchronize your tests with the app behavior, It's possible that you may look for a quick workaroundĀ (some of these are listed below),

However, I would encourage you to not use these as that would lead to much more maintainable and reliable tests:

  • UseĀ Thread.sleep()Ā to put an artificial delay in your tests is a really bad idea since you don't in advance how much time an operation would take when it's run on slower devices. This scales very poorly when the time taken by async operation changes in the future and is one of the most common reasons forĀ "flaky"Ā tests 😳

  • Implement retry wrappersĀ You may think, I'll just keep a loop running that checks if the app is still performing async work until a timeout happens, many popular E2E frameworks likeĀ Appium,Ā SeleniumĀ do use this approach. Again, it’s not very deterministic and can vary with device and network conditions

  • Using instances ofĀ CountDownLatchĀ to wait until some no of operations executing on another thread is complete. These objects have a timeout and add unnecessary complexity to your code increasing maintenance overhead

ReadĀ Android developers guideĀ for some more context on this

When to use Idling resources

What are some of the common use cases when we could consider using Idling resources?

Glad you asked. Below are a few of them:

  • Load data from the internet

  • Load data from the local data source

  • Establish connection with DB and callbacks

  • Manage services, either system orĀ IntentService

  • Perform complex business logic like bitmap transformations

If these operations update a UI that we want to validate, then we should register them as Idling resource

Let's write a test šŸ§‘šŸ»ā€šŸ’»

By now, it's clear that by usingĀ IdlingResource, we essentially make our test wait until whatever operations an app is performing are completed, let's see a practical example to wrap our heads around this:

Setting up dependencies

For this test, we'll be using a simple idling resource implementation (more on how exactly a bit later in the blog) and we need to add below to ourĀ app/build.gradleĀ file

// Note that espresso-idling-resource is used in the code under test.
implementation 'androidx.test.espresso:espresso-idling-resource:' + rootProject.espressoVersion

Gradle tip: You can see theĀ rootProject.espressoVersionĀ in the rootĀ build.gradleĀ underĀ extĀ block

ext {
    buildToolsVersion = "31.0.0"
    androidxAnnotationVersion = "1.2.0"
    guavaVersion = "30.1.1-android"
    coreVersion = "1.4.1-alpha05"
    extJUnitVersion = "1.1.4-alpha05"
    runnerVersion = "1.5.0-alpha02"
    espressoVersion = "3.5.0-alpha05"
}

The App under test 🧐

We are using a sample app similar to our first example with some modifications to demo Idling resource, You can find the app atĀ IdlingResourceSampleĀ and theĀ test caseĀ on Github

Assume that we need to automate the below scenario:

GIVEN user types "some text" in EditText with id: editTextUserInput
AND user taps on "Change text taking some time" Button (with id: changeTextBt)
THEN app displays entered text in TextView with id: textToBeChanged

Below is how the app looks for each of these steps:

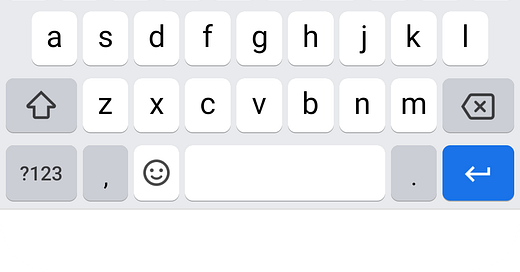

  • GIVEN user types "some text" inĀ EditTextĀ withĀ id: editTextUserInput

  • AND the user taps on the "Change text taking some time" Button (with id: changeTextBt)

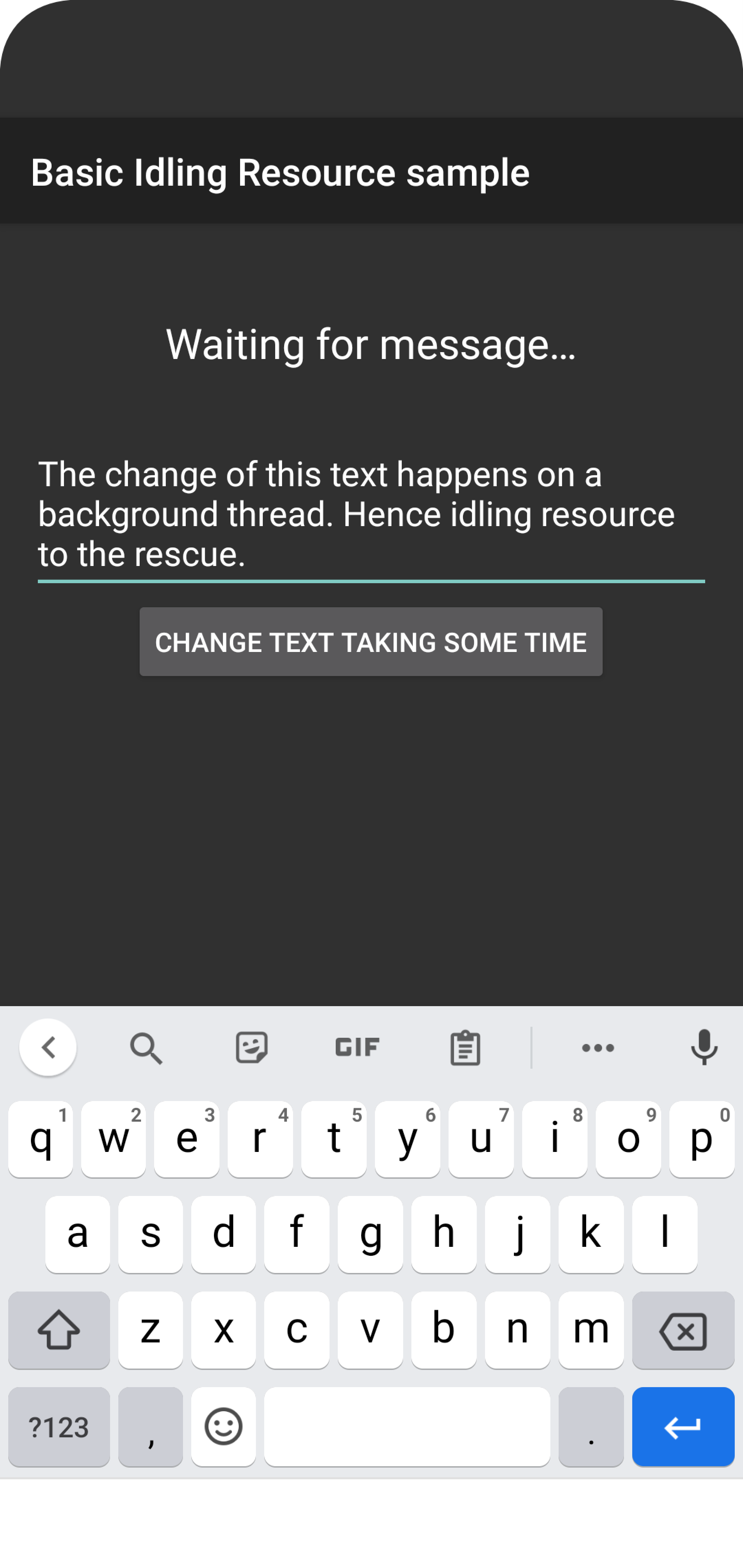

    • Notice: The app displays a temporary textĀ "Waiting for message...Ā as it waits for the background operation to complete

THEN app displays entered text in TextView with id: textToBeChanged

And this is how the layout inspector looks for this app

The test that waits šŸ›‘

Below is the complete test for this:

ChangeTextIdlingResourcePracticeTest.java

package com.example.android.testing.espresso.IdlingResourceSample;

import static androidx.test.espresso.Espresso.onView;
import static androidx.test.espresso.action.ViewActions.click;
import static androidx.test.espresso.action.ViewActions.closeSoftKeyboard;
import static androidx.test.espresso.action.ViewActions.typeText;
import static androidx.test.espresso.assertion.ViewAssertions.matches;
import static androidx.test.espresso.matcher.ViewMatchers.withId;
import static androidx.test.espresso.matcher.ViewMatchers.withText;

import android.app.Activity;

import androidx.test.core.app.ActivityScenario;
import androidx.test.espresso.IdlingRegistry;
import androidx.test.espresso.IdlingResource;
import androidx.test.ext.junit.rules.ActivityScenarioRule;
import androidx.test.ext.junit.runners.AndroidJUnit4;

import org.junit.After;
import org.junit.Before;
import org.junit.Rule;
import org.junit.Test;
import org.junit.runner.RunWith;

@RunWith(AndroidJUnit4.class)
public class ChangeTextIdlingResourcePracticeTest {
    // We create a variable to hold an idling resource instance
    private IdlingResource mIdlingResource;

    /**
     * Before a test executes, we get idling resource from activity and register it into
     * the IdlingRegistry
     */
    @Before
    public void registerIdlingResource() {
        // We use ActivityScenario to launch and get access to our MainActivity
        ActivityScenario activityScenario = ActivityScenario.launch(MainActivity.class);

        // activityScenario.onActivity provides a thread safe mechanism to access the activity
        // We pass the activity as a lambda and then register it into idling registry
        activityScenario.onActivity((ActivityScenario.ActivityAction<MainActivity>) activity -> {
            mIdlingResource = activity.getIdlingResource();
            IdlingRegistry.getInstance().register(mIdlingResource);
        });
    }

    @Test
    public void whenUserEntersTextAndTapsOnChangeText_ThenTextChangesWithADelay() {
        // Type text in text box with type something ...
        String text = "This is gonna take some time";
        onView(withId(R.id.editTextUserInput)).perform(typeText(text), closeSoftKeyboard());

        // Tap on "Change text taking some time" button
        onView(withId(R.id.changeTextBt)).perform(click());

        // Assert the entered text is displayed on the screen
        onView(withId(R.id.textToBeChanged)).check(matches(withText(text)));

        /* NOTE: We'll get below error if we try to run this test without idling resources
         * androidx.test.espresso.base.AssertionErrorHandler$AssertionFailedWithCauseError: 'an instance of android.widget.TextView and view.getText()
         * with or without transformation to match: is "This is gonna take some time"' doesn't match the selected view.
           Expected: an instance of android.widget.TextView and view.getText() with or without transformation to match: is "This is gonna take some time"
           Got: view.getText() was "Waiting for message…"
         */
    }

    @After
    public void unregisterIdlingResource() {
        /**
         * After the test has finished, we unregister this idling resource
         * from the IdlingRegistry
         */
        if (mIdlingResource != null) {
            IdlingRegistry.getInstance().unregister(mIdlingResource);
        }
    }
}

Let's unpack this line by line āœŒšŸ¼

If you notice the testĀ whenUserEntersTextAndTapsOnChangeText_ThenTextChangesWithADelay, you'll see it is very similar to the first test that we wrote. (If you need to refresh your memory you can read the first part here

however, āœ‹šŸ¼ if we just write that test and run using Android studio, we'll see espresso throw an error like the below:

androidx.test.espresso.base.AssertionErrorHandler$AssertionFailedWithCauseError: 'an instance of android.widget.TextView and view.getText()
  * with or without transformation to match: is "This is gonna take some time"' doesn't match the selected view.
    Expected: an instance of android.widget.TextView and view.getText() with or without transformation to match: is "This is gonna take some time"
    Got: view.getText() was "Waiting for message…"

What happened?

This test fails because the app has a delay between the text being updated on the UI (due to some background thread operation that espresso is not aware of, and while we expect our entered text to show up in theĀ TextView, we instead seeĀ Waiting for message…

Idling resource to the rescue šŸƒā€ā™‚ļø

We'll need toĀ somehowĀ tell espresso that we want to wait until this background process completes. Let's dive into how that's done.

Create a variable to hold instance

We first create a variable to hold anĀ idlingResourceĀ instance

private IdlingResource mIdlingResource;

Register idling resource into the idling registry

We then need to register our resource intoĀ IdlingRegistry,

What the heck is a registry? šŸ¤·šŸ¼ā€ā™‚ļø

As perĀ official docs:

  • Handles registering and unregistering of IdlingResources with Espresso from within your application code.

  • These resources are required by Espresso to provide synchronization against your application code. All registered resources with this registry will be automatically synchronized against for each Espresso interaction.

  • This registry along with IdlingResource interface are bundled together in a small light weight module so that it can be pulled in as a dependency of the App under test with close to no overhead.

Let's see how:

Next, we set up our idling resource to be set upĀ beforeĀ each test run, to do that we need a handle on the activity and useĀ ActivityScenarioĀ to launch our activity

ActivityScenario activityScenario = ActivityScenario.launch(MainActivity.class);

We then perform the below steps to register our resource

  • We then get theĀ idlingResourceĀ from the activity by writing a lambda

  • Get an instance ofĀ IdlingRegistry

  • and then register our idlingResource into theĀ IdlingRegistry

(ActivityScenario.ActivityAction<MainActivity>) activity -> {
            mIdlingResource = activity.getIdlingResource();
            IdlingRegistry.getInstance().register(mIdlingResource);
        }

We call the above lambda on theĀ onActivity()Ā method

activityScenario.onActivity()

Below is what the complete setup method looks like:

/**
* Before a test executes, we get idling resource from activity and register it into
* the IdlingRegistry
*/
@Before
public void registerIdlingResource() {
  // We use ActivityScenario to launch and get access to our MainActivity
  ActivityScenario activityScenario = ActivityScenario.launch(MainActivity.class);

  // activityScenario.onActivity provides a thread safe mechanism to access the activity
  // We pass the activity as a lambda and then register it into idling registry
  activityScenario.onActivity((ActivityScenario.ActivityAction<MainActivity>) activity -> {
      mIdlingResource = activity.getIdlingResource();
      IdlingRegistry.getInstance().register(mIdlingResource);
  });
}

But wait, where did we implement theĀ activity.getIdlingResource()Ā šŸ¤”?

I'm glad you spotted it as well, It's a method that we need to add to our Activity, Let's look atĀ com/example/android/testing/espresso/IdlingResourceSample/MainActivity.java

Please note:Ā In most cases, if an implementation of idling resource has already been created, then you could just use it out of the box, but understanding the internals are helpful to provide us insights into how an example implementation looks like and to understand the code flow and if we want to implement our own.

/**
* Only called from test, creates and returns a new {@link SimpleIdlingResource}.
*/
@VisibleForTesting
@NonNull
public IdlingResource getIdlingResource() {
  if (mIdlingResource == null) {
      mIdlingResource = new SimpleIdlingResource();
  }
  return mIdlingResource;
}

In this implementation, we create an Instance ofĀ SimpleIdlingResourceĀ and set it into theĀ mIdlingResourceĀ instance set in the activity

SimpleIdlingResource.java

You can see the complete implementation at:Ā com/example/android/testing/espresso/IdlingResourceSample/IdlingResource/SimpleIdlingResource.javaĀ as well

public class SimpleIdlingResource implements IdlingResource {

    @Nullable private volatile ResourceCallback mCallback;

    // Idleness is controlled with this boolean.
    private AtomicBoolean mIsIdleNow = new AtomicBoolean(true);

    @Override
    public String getName() {
        return this.getClass().getName();
    }

    @Override
    public boolean isIdleNow() {
        return mIsIdleNow.get();
    }

    @Override
    public void registerIdleTransitionCallback(ResourceCallback callback) {
        mCallback = callback;
    }

    /**
     * Sets the new idle state, if isIdleNow is true, it pings the {@link ResourceCallback}.
     * @param isIdleNow false if there are pending operations, true if idle.
     */
    public void setIdleState(boolean isIdleNow) {
        mIsIdleNow.set(isIdleNow);
        if (isIdleNow && mCallback != null) {
            mCallback.onTransitionToIdle();
        }
    }
}
  • We use a flagĀ mIsIdleNowĀ to denote if the app is idle

  • Also, We set a methodĀ setIdleStateĀ to set this state and callĀ onTransitionToIdleĀ on theĀ ResourceCallback

If we peek at the code forĀ IdlingResourceĀ interface, we can see that a method providing implementation ofĀ onTransitionToIdle()Ā is called to tell espresso that the app is in an idle state

/** Registered by an {@link IdlingResource} to notify Espresso of a transition to idle. */
public interface ResourceCallback {
  /** Called when the resource goes from busy to idle. */
  public void onTransitionToIdle();
}

Unregister idling resource from the registry

Once our test has finished execution, we want to also unregister this idling resource from the IdlingRegistry usingĀ unregister()Ā method

@After
public void unregisterIdlingResource() {
  /**
    * After the test has finished, we unregister this idling resource
    * from the IdlingRegistry
    */
  if (mIdlingResource != null) {
      IdlingRegistry.getInstance().unregister(mIdlingResource);
  }
}

If we run our test, it should pass

Bonus: How does the app implement the delay?

If you are curious about how the app is implementing the delay, please read this section

There is a classĀ MessageDelayer, that declares aĀ processMessageĀ the method that takes a string message, an instance of the callback, and an idlingResource

MessageDelayer.java

package com.example.android.testing.espresso.IdlingResourceSample;

import android.os.Handler;
import androidx.annotation.Nullable;
import androidx.test.espresso.IdlingResource;

import com.example.android.testing.espresso.IdlingResourceSample.IdlingResource.SimpleIdlingResource;

/**
 * Takes a String and returns it after a while via a callback.
 * <p>
 * This executes a long-running operation on a different thread that results in problems with
 * Espresso if an {@link IdlingResource} is not implemented and registered.
 */
class MessageDelayer {

    private static final int DELAY_MILLIS = 3000;

    interface DelayerCallback {
        void onDone(String text);
    }

    /**
     * Takes a String and returns it after {@link #DELAY_MILLIS} via a {@link DelayerCallback}.
     * @param message the String that will be returned via the callback
     * @param callback used to notify the caller asynchronously
     */
    static void processMessage(final String message, final DelayerCallback callback,
            @Nullable final SimpleIdlingResource idlingResource) {
        // The IdlingResource is null in production.
        if (idlingResource != null) {
            idlingResource.setIdleState(false);
        }

        // Delay the execution, return message via callback.
        Handler handler = new Handler();
        handler.postDelayed(new Runnable() {
            @Override
            public void run() {
                if (callback != null) {
                    callback.onDone(message);
                    if (idlingResource != null) {
                        idlingResource.setIdleState(true);
                    }
                }
            }
        }, DELAY_MILLIS);
    }
}

Few things to note:

  • If we have a valid instance ofĀ idlingResource, We set idle to false

idlingResource.setIdleState(false);
  • We useĀ HandlerĀ to post our messages with a delay usingĀ DELAY_MILLISĀ and set the state to idle once we are done

We call this delayer from theĀ onClick()Ā method of theĀ MainActivity

MainActivity.java

@Override
public void onClick(View view) {
  // Get the text from the EditText view.
  final String text = mEditText.getText().toString();

  if (view.getId() == R.id.changeTextBt) {
      // Set a temporary text.
      mTextView.setText(R.string.waiting_msg);
      // Submit the message to the delayer.
      MessageDelayer.processMessage(text, this, mIdlingResource);
  }
}

Next steps šŸ«µšŸ¼

  • This post talks about the basic concepts around idling resources, in your app you may want to use other implementations like:

    • CountingIdlingResource,

    • UriIdlingResource,

    • IdlingThreadPoolExecutor,

    • IdlingScheduledThreadPoolExecutorĀ etc.

    • Discussing them in detail is beyond the scope of this post, however, feel free to refer to these in theĀ official guideĀ and then understand/implement them for your specific use case, We might go into detail on a few of them in a future post

  • If you choose to implement your own idling resource, Please readĀ theseĀ to know about some good patterns

Resources šŸ“˜

  • You can find the app and test code for this post on Github:

    • App

    • Test code

  • Please readĀ the espresso idling resourceĀ that talks about how to work with idling resources on Android developers

Conclusion āœ…

Hopefully, this post gives you an idea of how to work with Idling resources in espresso. Stay tuned for the next post where we’ll dive into how to automate and work withĀ WebViewsĀ with espresso

As always, Do share this with your friends or colleagues and if you have thoughts or feedback, I’d be more than happy to chat over on Twitter or comments. Until next time. Happy Testing and learning.

Share this post
Hello, espresso! Part 4 Working with Idling resources 😓
newsletter.automationhacks.io
Comments

Create your profile

0 subscriptions will be displayed on your profile (edit)

Skip for now

Only paid subscribers can comment on this post

Already a paid subscriber? Sign in

Check your email

For your security, we need to re-authenticate you.

Click the link we sent to , or click here to sign in.

TopNew

No posts

Ready for more?

Ā© 2022 Gaurav Singh
Privacy āˆ™ Terms āˆ™ Collection notice
Publish on Substack Get the app
SubstackĀ is the home for great writing
